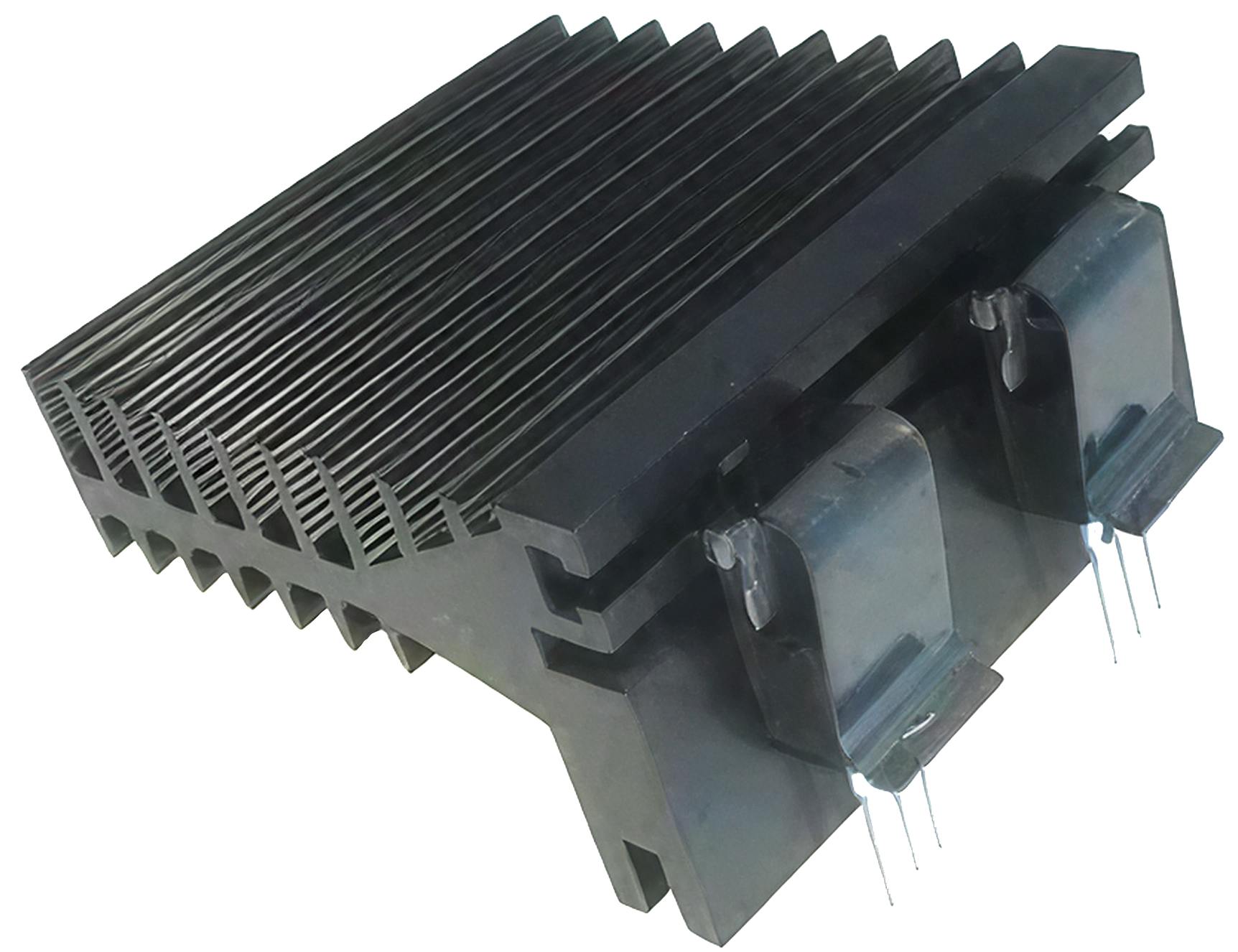

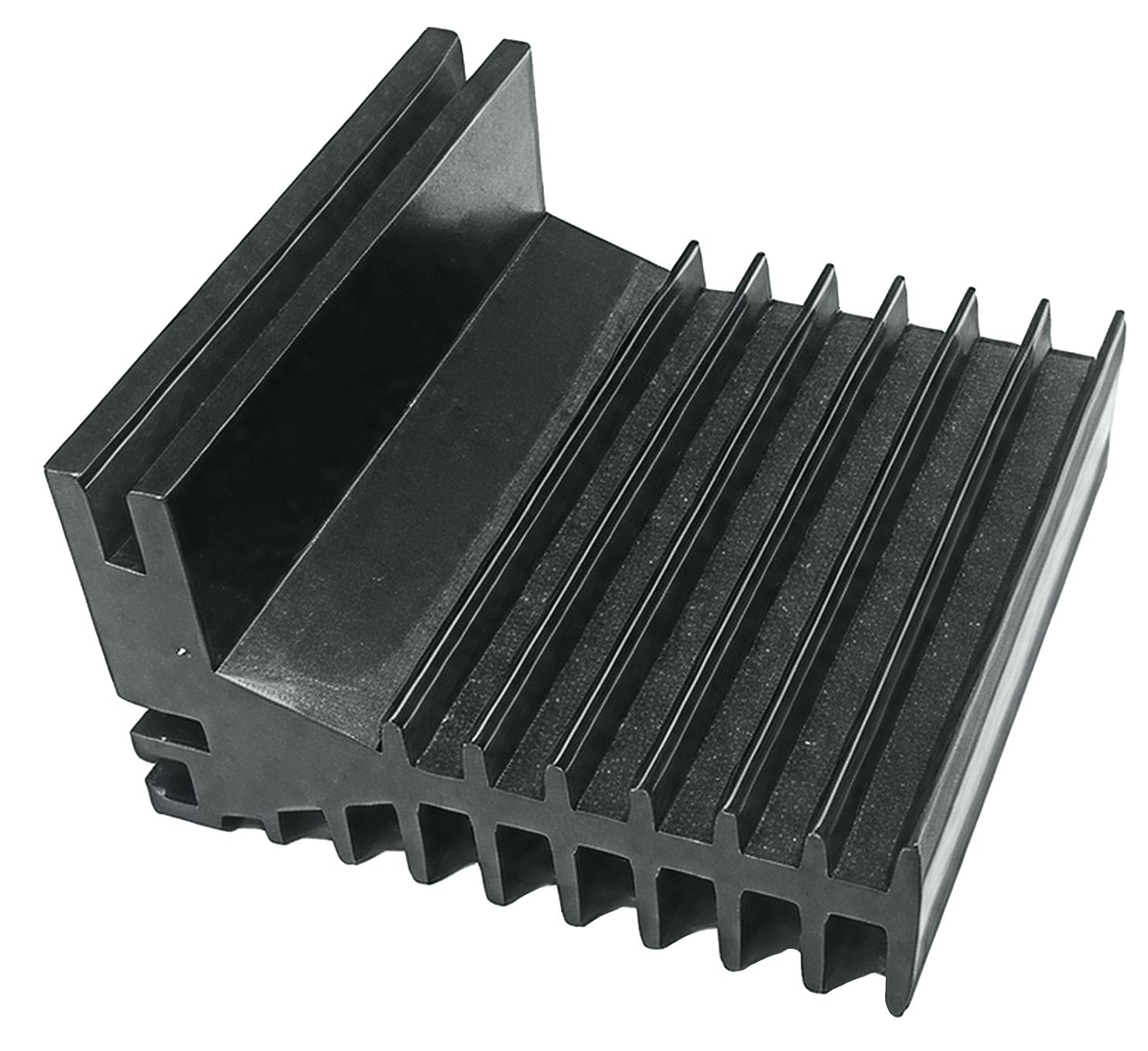

PPN50 Heat Sink

    board-mounted / ppn

    A major benefit of ABL sourcing hundreds of tonnes of aluminium extrusion means that we have the experience and contacts of dealing with aluminium extrusion mills based all around the world. Many of these have specific capabilities for certain types of extrusion needs and so we can build on our many years of dealing with these mills to ensure we align your bespoke aluminium extrusion profile requirements with the best raw material supplying mill.

    Width [mm]50
    Length [mm]50
    Height [mm]28
    Thermal TapeNo
    Clip2
    °C/W Natural5.00
    Part Number Without PinsPPN0500B

    This heatsink is suitable for use with the following devices:

    • TO220
    • TO218
    • TO247

    Heatsink RoHS Regulations Information

    (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2008)

    All ABL heatsinks are ROHS and WEE compliant.
    All extrusions are ROHS and WEE compliant.
