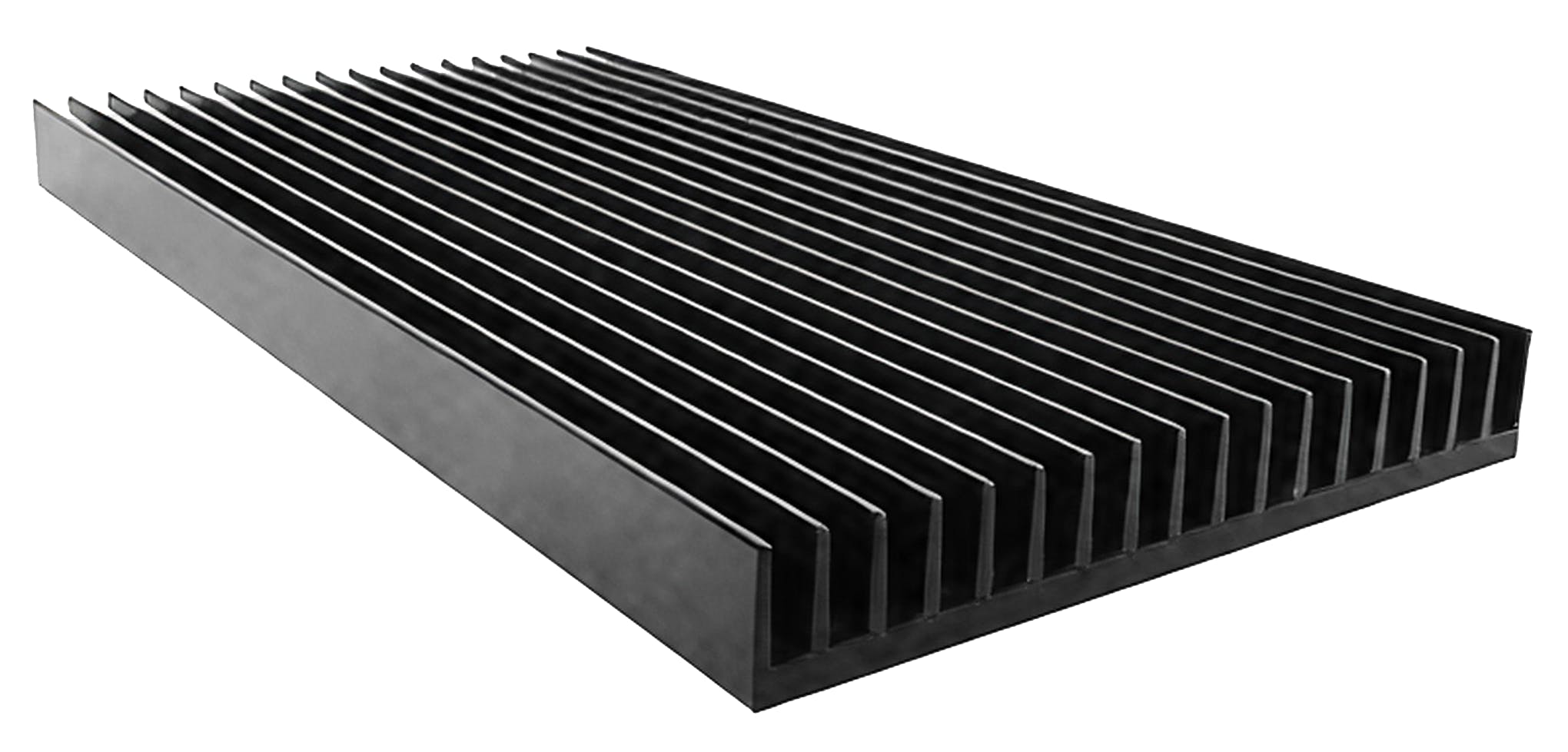

109AB Heat Sink

    extruded / ab / 100 Series

    A major benefit of ABL sourcing hundreds of tonnes of aluminium extrusion means that we have the experience and contacts of dealing with aluminium extrusion mills based all around the world. Many of these have specific capabilities for certain types of extrusion needs and so we can build on our many years of dealing with these mills to ensure we align your bespoke aluminium extrusion profile requirements with the best raw material supplying mill.

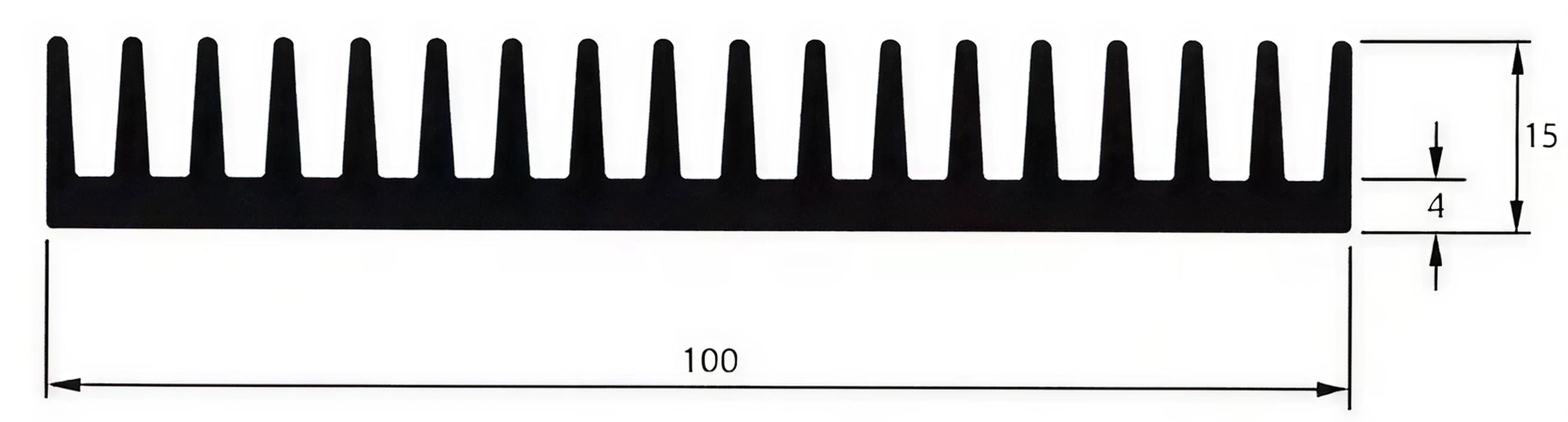

    Width [mm]100
    Length [mm]Custom
    Height [mm]15
    Thermal TapeNo
    °C/W Natural1.70
    °C/W Forced 2M/s0.60

    This heatsink is suitable for use with the following devices:

    • TO220
    • TO218
    • TO247

    THERMAL PERFORMANCE

    All information is for reference purposes only.

    CALCULATE

    RESULTS

    1.224

    FORCED [*C/W]

    1.224

    PASSIVE [*C/W]

    Heatsink RoHS Regulations Information

    (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2008)

    All ABL heatsinks are ROHS and WEE compliant.
    All extrusions are ROHS and WEE compliant.

    109 AB photo
    Processing Aluminium
    109 AB photo
    109ab
